Summary of orientation calculations

The cumulative angle distribution is shown in Fig. 3 for the three depolarization laws considered. Also shown is the expectation for an isotropic distribution of source orientations. Although the orientation derived for any individual source is uncertain, the distribution of source orientations is more reliable and can give useful information.

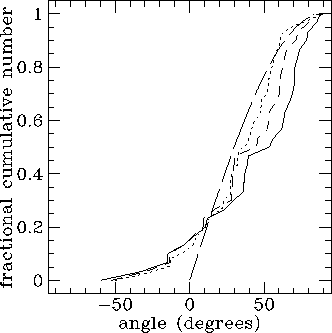

Fig 3. Cumulative distributions of the orientation angle theta for the three depolarization laws, assuming m=1. Burn law: dotted line, partially resolved screen: short dashed line, well resolved screen: solid line. The long dashed line shows the expected cumulative distribution if the source orientations are isotropic.

As can be seen from Fig. 3, all three depolarization laws give qualitatively similar results. The Burn law, with its strong dependence on the RM dispersion, gives smaller dispersion ratios and has more sources close to the plane of the sky than the other models. In all cases, however, the distribution of source orientations is non-isotropic with a preference for sources to be close to the line of sight. This is to be expected given the selection criteria for the sample, which selected against sources close to the plane of the sky by requiring a jet to be visible.
